Product Description
HE-03H 06H Medical Portable 4.3 inch Color LCD 3 Channel Digital Electrocardiograph
HE-03H
* 3 channel ECG machine with automatic interpretation
HE-06H
* 6 channel ECG machine with automatic interpretation
Features:
* Manual/Auto working Modes
* Simultaneous 12 leads acquisition and 3-ch recording with high resolution thermal printer.
* 3 inch Color TFT LCD display ECG wave and friendly menu setting.
* Support touch panel and keypad input ways
* Support SD card storage.
* 120 seconds ECG wave freeze and replay function.
* Lead-off detection and alert
* Digital filtering, resisting baseline drift, AC and EMG interference
* Built in USB/RS232 interface(ECGNET software optional)
* Built in rechargeable Li-ion battery support less than 3 hours continuously work.
* AC power supply at 90-240V@50/60Hz
Technical Specifications | |
Lead | standard 12 leads |
Lead acquisition | 16bit/24bit 1000Hz（synchronously 12 leads） |
Work modes | MANUAL、AUTO modes |
Filter: | |
AC Flter | 50Hz / 60Hz |
EMG Filter | 35Hz / 45Hz |
Anti-Drift Filter | 0.15Hz (Adaptive) |
Display: | 4.3 inch TFT LCD with touch panel |
Standard Configuration
HE-03H
● Patient cable 1 set
● Limb electrode 4 sets
● Chest elelctrodes 6 sets
● Paper axis 1 set
● Thermal paper 1 set
● 3-cord power cord 1 set
HE-06H
● Patient cable 1 set
● Limb electrode 4 sets
● Chest elelctrodes 6 sets
● Paper axis 1 set
● Thermal paper 1 set
● 3-cord power cord 1 set
● AC Adaptor 1 set

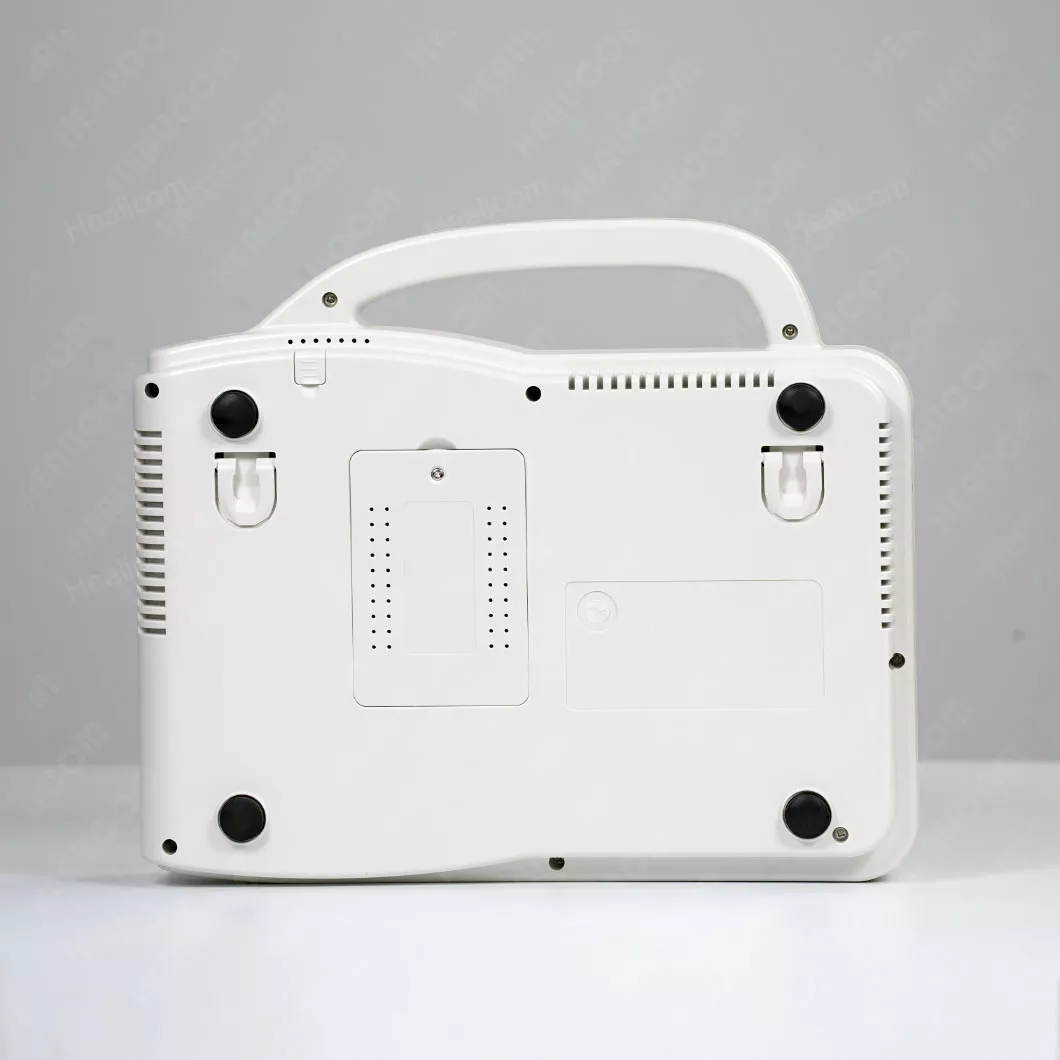

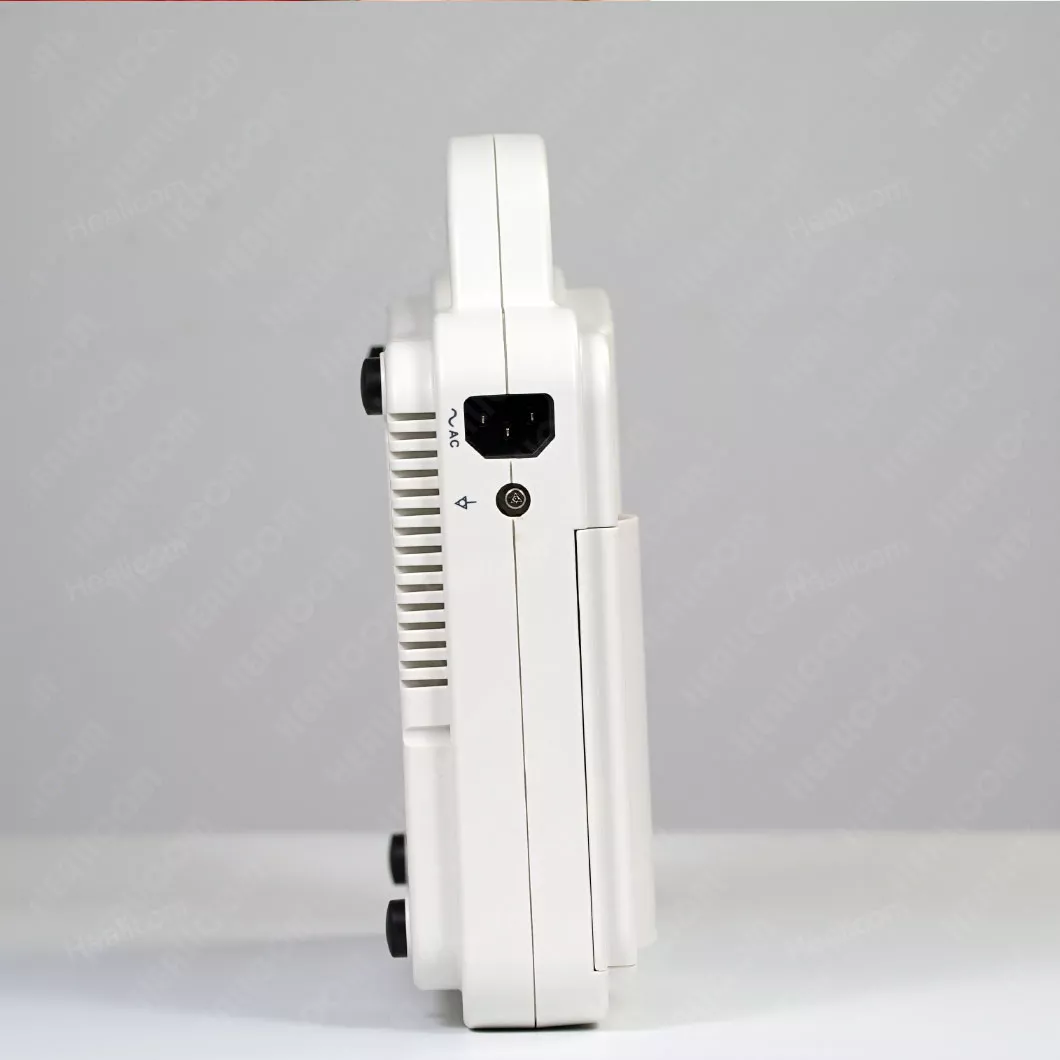

Gallery
